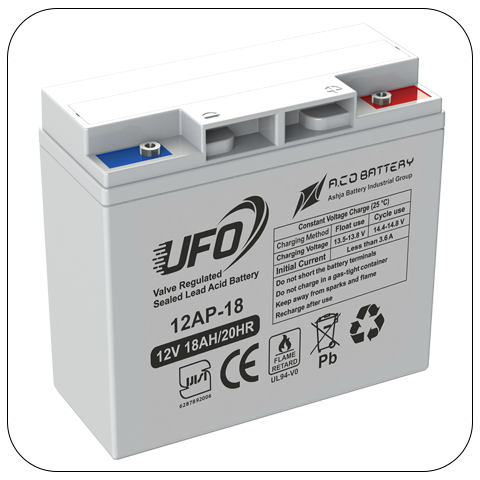

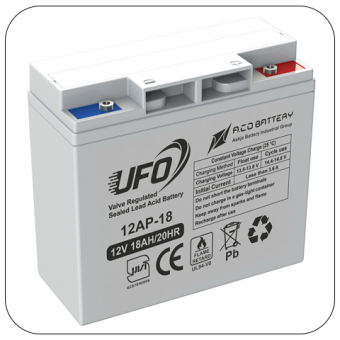

Flame Retardant UPS Battery 18Ah

Flame Retardant UPS Battery 18Ah

Warranty, months: 12



  • High Discharge Performance
  • Long Life
  • Low Self-Discharge
  • Centralized Venting System
  • Wide Ranging Operating Temperature
  • Container & Cover ABS (Optional-Flame Retardant ABS)
  • Maintenance Free
  • High Gas Recombination Efficiency



  • Barcode
    12AP-18
  • Capacity
    18Ah
  • Voltage
    12 V
  • Type
    A2
  • length
    181 mm
  • width
    77 mm
  • Height
    166 mm
  • Weight
    5.45 kg
Flame Retardant UPS Battery 18Ah
Download Catalog
product introduction





Product Specifications
  • Total Height
    166 mm
  • Nominal Voltage
    12V
  • Capacity (20Hr)
    18 Ah
  • Internal Resistance (Fully Charge (25°C))
    15mΩ
  • Container & Cover
    ABS
  • Maximum Discharge Current (A,5S)
    185
  • Pole TYpe
    A2
  • Maximum Charging Current
    3.6 A
  • Float charging voltage
    13.5-13.8V(18mV/°C)
  • Cyclic charging voltage
    14.4-14.8V(30mV/°C)
  • Discharge
    -15 to +50
  • Charge
    -15 to +40
  • Storage
    -15 to +40
