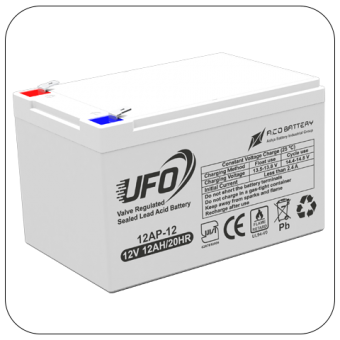

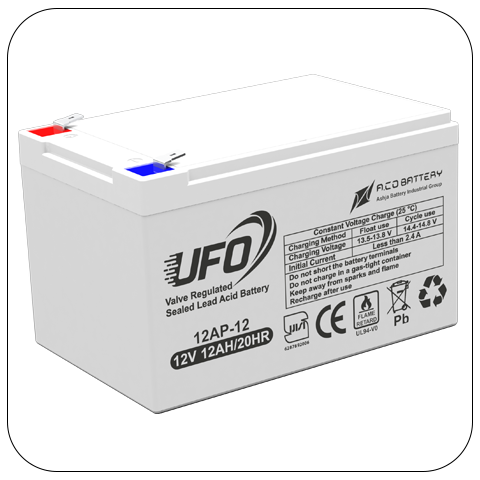

Flame Retardant UPS Battery 12Ah

Flame Retardant UPS Battery 12Ah

Warranty, months: 12



  • High Discharge Performance
  • Long Life
  • Low Self-Discharge
  • Centralized Venting System
  • Wide Ranging Operating Temperature
  • Container & Cover ABS (Optional-Flame Retardant ABS)
  • Maintenance Free
  • High Gas Recombination Efficiency



  • Barcode
    12AP-12
  • Capacity
    12Ah
  • Voltage
    12 V
  • Type
    A1
  • length
    152 mm
  • width
    99 mm
  • Height
    95 mm
  • Weight
    3.70 kg
Flame Retardant UPS Battery 12Ah
Download Catalog
product introduction





Product Specifications
  • Total Height
    102 mm
  • Nominal Voltage
    12V
  • Capacity (20Hr)
    12 Ah
  • Internal Resistance (Fully Charge (25°C))
    16mΩ
  • Container & Cover
    ABS
  • Maximum Discharge Current (A,5S)
    185
  • Pole TYpe
    A1
  • Maximum Charging Current
    2.4A
  • Float charging voltage
    13.5-13.8V(18mV/°C)
  • Cyclic charging voltage
    14.4-14.8V(30mV/°C)
  • Discharge
    -15 to +50
  • Charge
    -15 to +40
  • Storage
    -15 to +40
